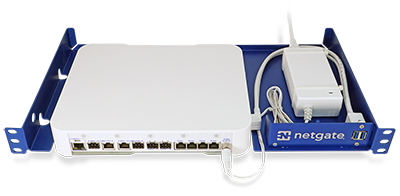

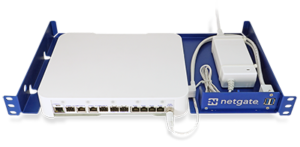

The Netgate® 8200 with TNSR® software is ideal for remote office, managed service providers, and enterprise networks with high-speed 10 GbE routing requirements looking for enterprise-class performance in a rack mount configuration. To provide reliable & consistent performance, the 8200 has an actively controlled cooling fan integrated into the chassis baseplate which allows the unit to remain uncharacteristically quiet for such a powerful 1U system.
- Rack mount
- Expandable memory & storage
- AES-NI
- Network expandable
- Runs pfSense Plus or TNSR software
Who is this for?
- Medium Business
- Large Business
- Service Provider
IPERF3 TRAFFIC
L3 Forwarding: 18.65 Gbps
Access Control List Filtering: 18.63 Gbps
(10k ACLs)
IPsec VPN: 15.345 Gbps
(AES-GCM-128 w/QAT)
IMIX TRAFFIC
L3 Forwarding: 18.89 Gbps
Access Control List Filtering: 11.22 Gbps
(10k ACLs)
IPsec VPN: 3.93 Gbps
(AES-GCM-128 w/QAT)
Intel® Atom® C3758R with QAT, 8-core @ 2.4 GHz
Network Ports:
(2) 10 Gbps SFP+ cage WAN ports
(2) Auto media detect 1 Gbps (RJ-45 copper / SFP fiber) Combo WAN ports
(4) 2.5 Gbps RJ-45 “direct” (unswitched) ethernet LAN ports (Intel i226)
